제품 상세 정보:
결제 및 배송 조건:
|
| 이름: | 지질 드릴링 리그 기계 | 타입: | 회전하는 드릴링 리그 |
|---|---|---|---|
| 전력형: | 디젤 | 용법: | 우물 |
| 전압: | 380v | 전원(w): | 15KW |
| 중량: | 626KGS | 인증: | ISO9001 |
| 다른 이름: | 교련 의장 | 교련 막대 직경: | 42, 50,89 |
| 상태: | 새롭습니다 | 장비 사이즈(L * B * H): | 1730년 * 860 * 1360 (밀리미터) |
| 강조하다: | 장비를 꿰뚫는 equipment,89mm 로드 핵심을 꿰뚫는 equipment,15KW 핵심을 꿰뚫는 200m 핵심 |
||

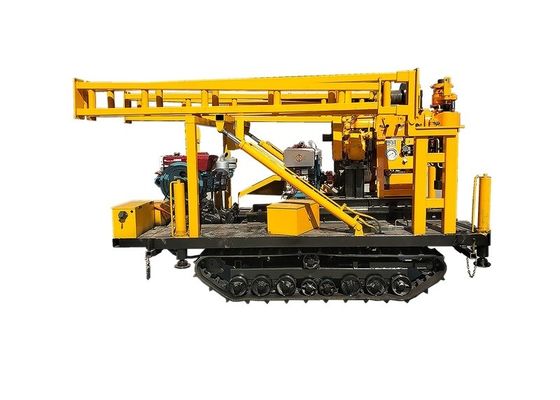

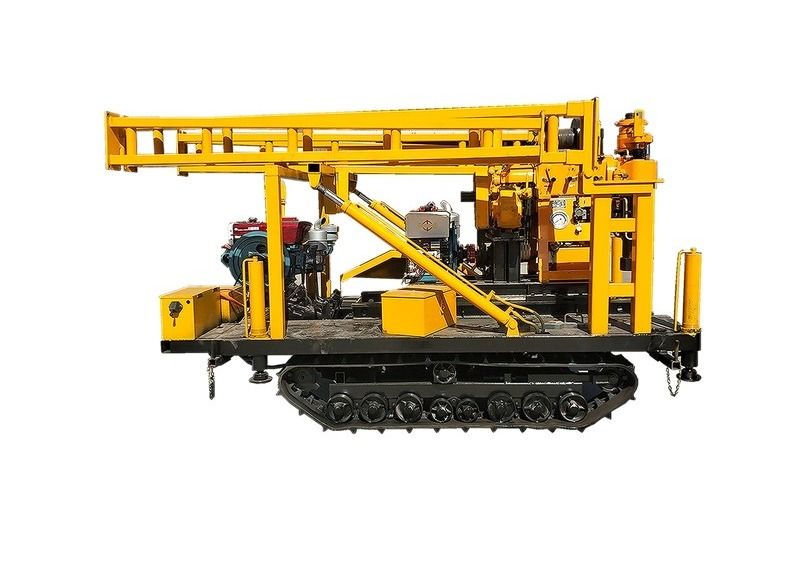

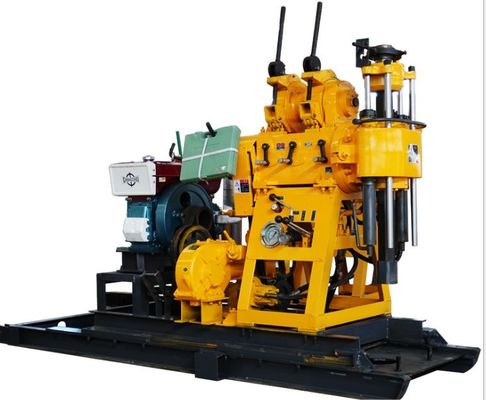

Spt 200M Soil Sample Test Geological Core Drilling Rig Machine for Geological Exploration
Geological Drilling Rig Machine brief introduction
The core drilling rig is a wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.
With large rotary torque which are better than the other same level drilling machines. The rotary unit has different rotating speed grades, which can meet the requirements in different layers and different drilling projects and very effective in diamond drilling.
Geological Drilling Rig Machine parameter
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension |
2800*950*1700mm |
Geological Drilling Rig Machine characteristic
A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
